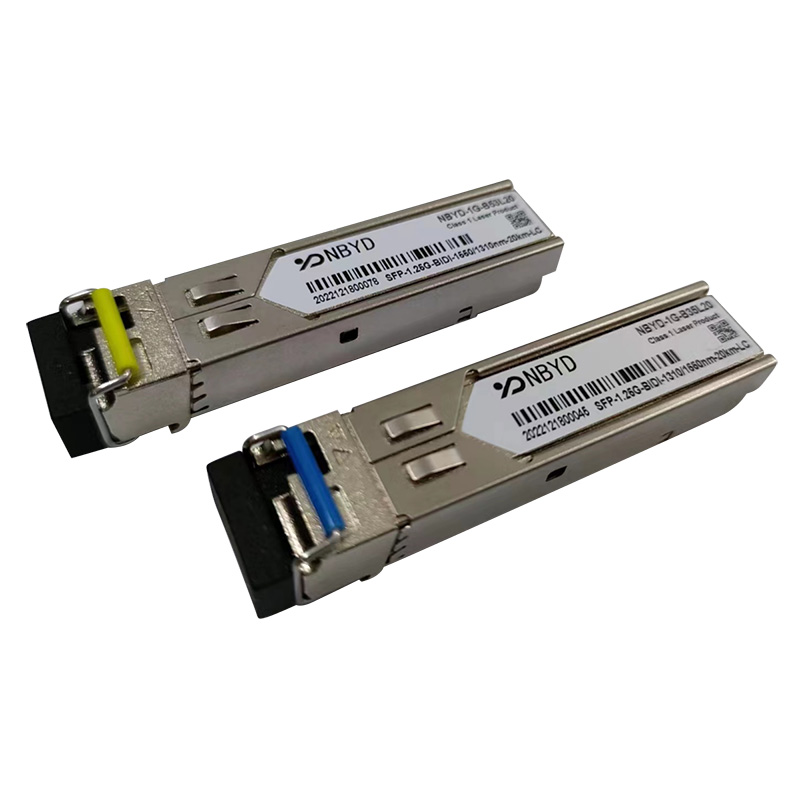

1.25G SFP BIDI Transceiver Module

PRODUCT FEATURES
●  Operating data rate up to 1.25/1.063Gbps
●  Tx1310/Rx1550, 1310nm FP Laser, 1550nm PIN-TIA
   or  Tx1550/Rx1310, 1550nm FP Laser, 1310nm PIN-TIA
●  Distance up to 20KM
●  Single 3. 3V Power supply and TTL Logic Interface
●  Simplex SC/ LC Connector Interface
●  Hot Pluggable,Metal enclosure, for Lower EMI
●  DDM function optional
●  Operating Case Temperature:
    Standard: 0℃~+70℃ ; Industrial:-40℃~+85℃
●  Compliant with MSA SFP Specification
●  Digital Diagnostic Monitor Function Compatible with SFF-8472
●  ROHS6 Compliant

Applications
●  Gigabit Ethernet
●  WDM Gigabit Ethernet Links
●  Xdsl Applications
●  Metro Edge Switching
