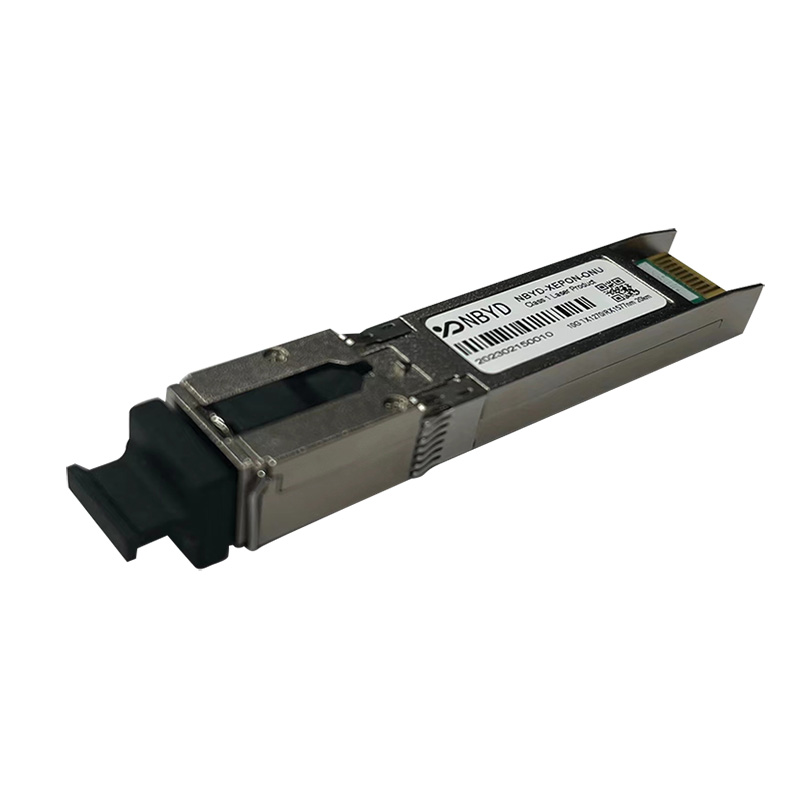

10G 20KM EPON ONU Optical Transceiver

PRODUCT FEATURES
●  Single Fiber 10G EPON ONU Transceiver
●  1270nm burst-mode 10.3125 Gb/s transmitter with DFB laser
●  1577nm continuous-mode 10.3125Gb/sAPD/TIA receiver
● Digital diagnostic monitoring (DDM)with internal calibration
● SFP+ package with SC/APC or SC/UPC receptacle connector
● +3.3V separated power supply, low power dissipation
● LVPECL interface logic level for data input
●  CML interface logic level for data output
●  LVTTL for burst signal input
●  LVTTL for receiver loss of signal detectindication
●  Compliant with ITU-T G.9807
●  SFF-8472 compliant
●  Telcordia GR-468-CORE and MIL-STD-883compliant
●  RoHS-6/6 compliant
●  Operating temperature range: -40C~ +85C
●  IEC 60825- 1 compliant
●  FCC Part 15 ClassB /EN55022 Class B (CISPR 22B)/
●  VCCI Class B compliant

Applications
●  10G/ 10G EPON ONU
