All-Dielectric Self-Supporting Stranded Optical Cable (ADSS)
- Product description
-

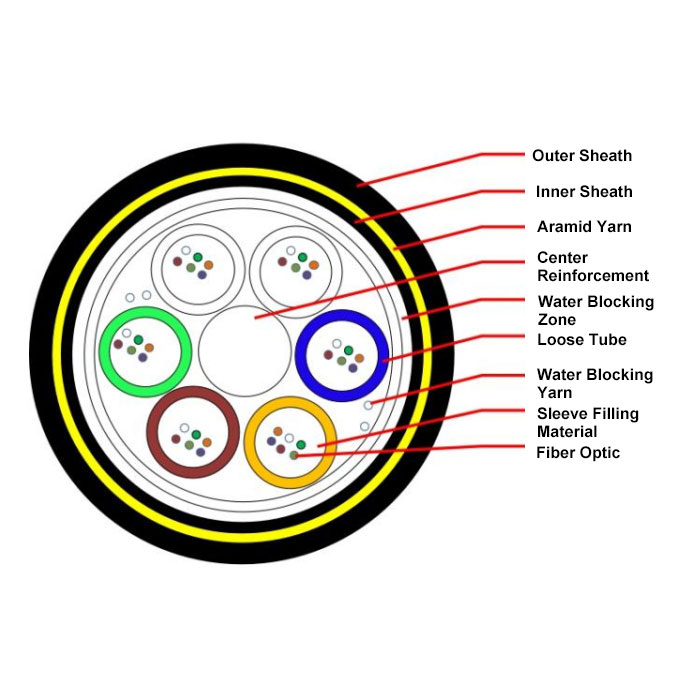

ADSS optical cable consists of optical fibers placed in a loose tube with filling gel. The central core of the cable is a non-metallic strength member FRP (may be added with PE cushioning layer), surrounded by a loose tube and filled with filling rope. Gaps inside and outside the cable core are filled with cable gel. The cable core is first protected by a polyethylene inner sheath, then wrapped with an aramid yarn, and finally protected by a polyethylene outer sheath or Anti-tracking (AT) outer sheath.
Range of fiber counts: 2 to 144 fibers

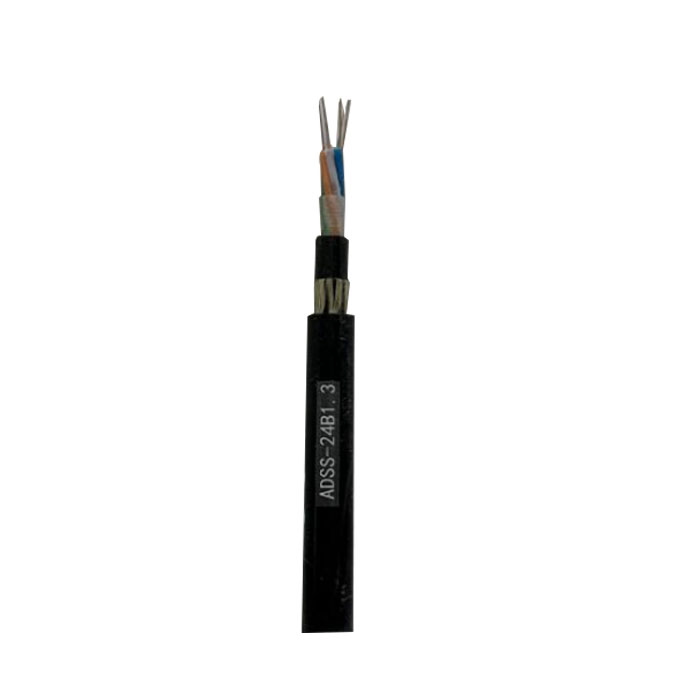

Specific cable models such as: ADSS-24B1.3, etc.
Product features:
High-quality optical fibers ensure excellent transmission performance of the cable.
Precise control of fiber surplus length ensures excellent mechanical and temperature characteristics of the cable.
Full cross-section water-blocking structure ensures good water-blocking and moisture-proof performance.
The central strengthening component adopts glass fiber reinforced plastic rod (FRP) with high Young's modulus.
All-dielectric self-supporting, high tensile strength aramid yarn or glass yarn reinforcement ensures self-supporting of the cable and that the optical fibers are not strained under harsh environmental conditions or affected by lightning induction.
Excellent performance polyethylene/anti-tracking outer sheath ensures the cable's safety in high induction potential environments.
ADSS optical cable performance indicators
Meet standards: DL/T788-2001, IEEE1222, and IEC 60794-1
Application range: Core network, outdoor optical cable for access network
Installation method: Aerial installation.
Operating temperature: -40°C to +70°C
Bending radius: Static 15 times the cable diameter, dynamic 25 times the cable diameter
