Central Tube Light Armored Cable (GYXTW)
- Product description
-

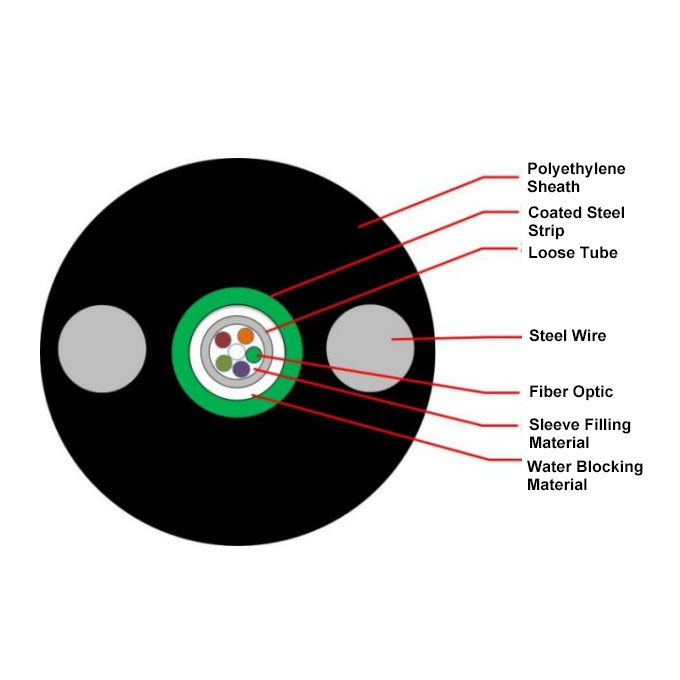

The structure of GYXTW optical cable involves placing optical fibers in a loose tube made of high-modulus material, filled with waterproof compound. The loose tube is longitudinally wrapped with a double-sided plastic-coated steel strip (PSP), and waterproof material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water blocking of the cable. Two parallel steel wires are placed on both sides and then extruded with a polyethylene sheath to form the cable.
Range of fiber counts: 2 to 12 fibers

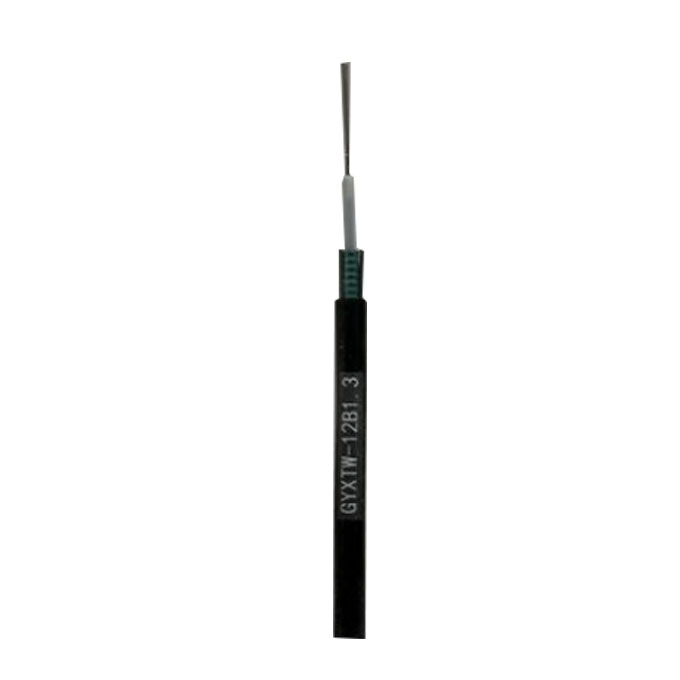

Specific cable models such as: GYXTW-12B1.3, etc.
Product features:
Excellent mechanical performance and temperature characteristics.
Effective protection of optical fibers.
Two parallel steel wires ensure the tensile strength of the cable.
Strong water-blocking and moisture-proof performance.
Small diameter, light weight, easy installation.
PE outer sheath has strong resistance to ultraviolet radiation and abrasion resistance.
GYXTW optical cable performance indicators:
Meet standards: YD/T 769-2018
Application range: Core network, metropolitan area network, and outdoor optical cable for access network
Installation method: Pipeline, tunnel, and non-self-supporting aerial installation.
Operating temperature: -40°C to +60°C
Bending radius: Static 10 times the cable diameter, dynamic 20 times the cable diameter
