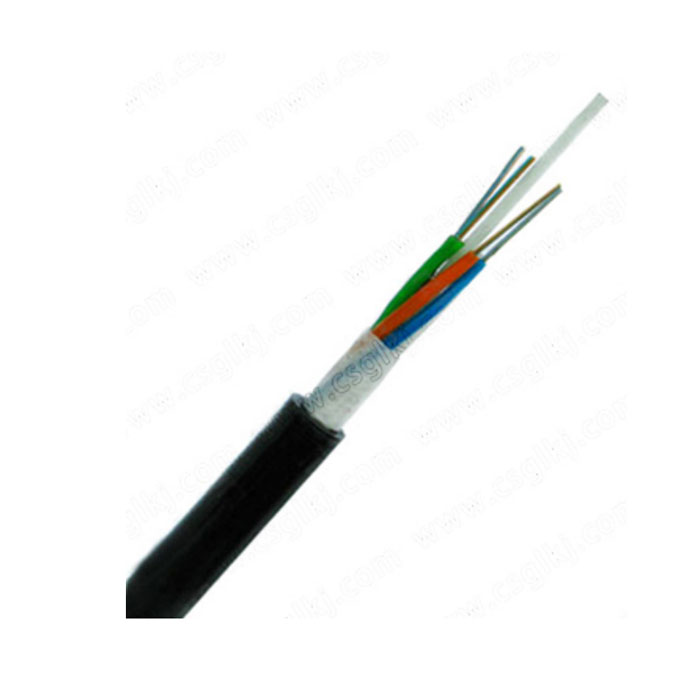

General Non-Metallic Cable (GYFTY)

  • Product description

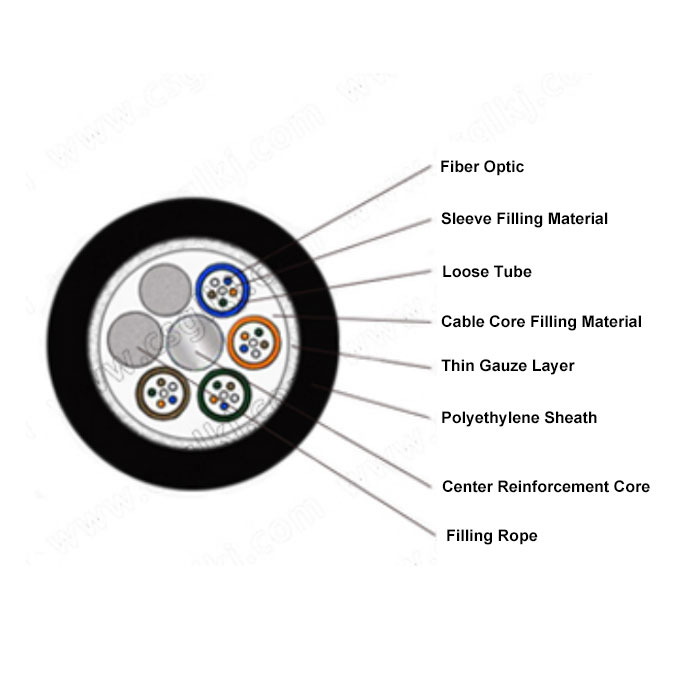

  • The structure of GYFTY optical cable involves placing optical fibers in a loose tube made of high-modulus material, filled with waterproof compound. The center of the cable core is a glass fiber reinforced plastic (FRP). The loose tube (and filling rope) is twisted around the central strengthening core to form a compact and circular cable core, filled with waterproof filler. The cable core is then extruded with a polyethylene outer sheath to form the cable.
    Range of fiber counts: 2 to 144 fibers

    Specific cable models such as: GYFTY-24B1.3, etc.


    Product features:
    Effective protection of optical fibers.
    Tight cable structure design.
    Excellent mechanical performance and temperature characteristics.
    The outer sheath has strong resistance to ultraviolet radiation and abrasion resistance.
    No metal components, suitable for power systems and high electromagnetic field environments.
    GYFTY optical cable performance indicators:
    Allowable tension: "Long-term/short-term" is "300N/1000N" or "600N/1500N" or "1000N/3000N";
    Allowable crush resistance: Long-term 300N/100mm, short-term 1000N/100mm;
    Bending radius: Static bending radius is 10 times the cable diameter, dynamic bending radius is 20 times the cable diameter;
    Storage and operating temperature range: -40~+70°C.
    Meet standards: YD/T 901 and IEC 60794-1
    Application range: Suitable for long-distance communication, inter-office communication, CATV, and computer network transmission systems, etc.
    Installation method: Pipeline, aerial
